Magnetic Stirrer: Operating Principle and Applications

When working in a laboratory, achieving proper mixing of solutions is essential. One device that simplifies this process is the magnetic stirrer. It offers reliable, consistent agitation that helps ensure accurate results. Magnetic stirrer uses include stirring or mixing solutions during experiments in a laboratory. Whether you are mixing simple solutions or preparing complex chemicals, the magnetic stirrer can streamline your workflow. Understanding how it functions and where it excels can help you make the best choice for your lab’s unique needs.

What is a Magnetic Stirrer?

A magnetic stirrer is a laboratory device used to mix liquids through a magnetic field. Instead of manually stirring with a glass rod, you drop a small, coated magnetic bar (stir bar) into the solution. It consists of a rotating magnetic field generator and a magnetic stir bar. When the stir bar is placed inside a container, and the device is activated, the bar rotates, mixing the liquid uniformly.

Key Advantages:

• Silent operation compared to overhead stirrers.
• Compact design suitable for small workspaces.
• Low maintenance due to the absence of mechanical moving parts.

Operating Principle of Magnetic Stirrers

The operating principle behind a magnetic stirrer lies in the interaction between magnetic fields. The device contains a rotating magnet or an electromagnet. When powered, the magnet beneath the platform starts spinning, creating a rotating magnetic field. A stir bar, typically made of an inert material like PTFE containing a tiny magnet inside, is placed into the solution to align it with this field.

As the field rotates, it forces the stir bar to spin at a controlled speed. This rotation generates a vortex in the liquid, improving mixing and ensuring that all components, from solutes to suspensions, are evenly distributed. This principle makes magnetic stirrers incredibly reliable and low maintenance. With no gears or shafts in direct contact with the solution, the risk of contamination is minimal.

For advanced models, features like programmable settings, variable speed control, and reversible motion enhance precision and efficiency. For example, the Magnetic Hot Plate Multi-Position Stirrer from Borosil Scientific uses microprocessor-controlled technology to provide consistent mixing with speeds ranging from 300 to 1500 RPM.

Types of Magnetic Stirrers

Different laboratory requirements necessitate various types of magnetic stirrers. Let’s explore the key types and their specialised features:

1. Basic Magnetic Stirrers

These are the simplest and most economical options for low-viscosity liquids and routine mixing tasks.

• Applications: Diluting solutions, dissolving salts, and titration experiments.
• Limitations: Ineffective for high-viscosity fluids or large volumes.

2. Magnetic Hot Plate Stirrers

Combining heating and mixing capabilities, these stirrers are ideal for experiments requiring simultaneous temperature regulation.

Key Features:

• Heating capacity for volumes up to 20 litres.
• Precise temperature control with integrated sensors.
• Durable heating surfaces for long-term use.

The Magnetic Hot Plate Stirrer (Heat & Stir) – 2L & 20L from Borosil Scientific offers precise temperature settings and a strong magnetic field for efficient stirring.

3. Multi-Position Magnetic Stirrers

Designed for high-throughput applications, these stirrers allow simultaneous mixing in multiple containers, saving time and resources.

• Applications: Parallel experiments in chemical synthesis or pharmaceutical research.

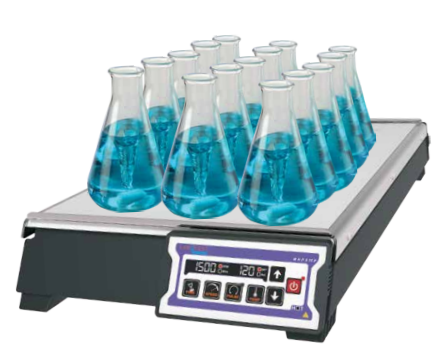

The Magnetic Hot Plate Multi-Position Stirrer provides programmable pulse modes and adjustable speed settings for better homogenisation.

4. High-Capacity Magnetic Stirrers

Built for industrial or large-scale applications, these stirrers handle larger volumes and higher viscosities without compromising efficiency.

Key Features:

• Wide heating surfaces for uniform temperature distribution.
• Hermetic designs to minimise spills and fumes.

Magnetic Stirrer Uses in Laboratories

The versatility of magnetic stirrers makes them suitable for a wide range of laboratory tasks. Some common magnetic stirrer uses include:

1. Chemical Synthesis: Magnetic stirrers ensure uniform mixing of reactants, improving reaction efficiency. Their ability to provide consistent heating and stirring is critical for synthesising compounds with precision.
2. Biological Experiments: In microbiology and cell culture labs, magnetic stirrers mix media and solutions without introducing contaminants. Their silent operation ensures minimal disruption in sensitive environments.
3. Analytical Chemistry: From sample preparation to titrations, magnetic stirrers play a vital role in ensuring homogeneity in solutions enhancing the accuracy of analytical methods.
4. Food and Beverage Testing: Magnetic stirrers help in emulsifying and homogenising samples, ensuring consistent quality control across products.

Advantages of Advanced Magnetic Stirrers

Modern magnetic stirrers incorporate several advanced features that enhance their functionality and user experience:

• Programmable Settings: Features like variable speed control, pulse mode, and timer settings provide flexibility for complex experiments.
• Safety Features: Advanced models include safe temperature settings, overload protection, and spill-resistant designs to minimise risks.
• Durability and Maintenance: Stainless steel heating surfaces and hermetically sealed designs ensure longevity and easy cleaning.

For instance, our Magnetic Hot Plate Multi-Position Stirrer offers a reversible mixing mode for thorough homogenisation and non-slip rubber feet for stability during operation.

Comparison of Magnetic Stirrer Types

Here is a comparison of different stirrers:

Maintenance Tips for Magnetic Stirrers

Proper maintenance ensures the longevity and performance of magnetic stirrers. Follow these tips for optimal results:

1. Regular Cleaning: Clean the stirrer plate and casing with a damp cloth after each use. Avoid abrasive cleaning agents to maintain the surface finish.
2. Inspect Components: Periodically check the stir bar for wear and replace it if necessary. Ensure the motor is functioning smoothly without unusual noises.
3. Calibrate Temperature Sensors: Regularly calibrate the temperature sensors for models with heating capabilities to ensure accurate readings.
4. Store Properly: When not in use, store the stirrer in a dust-free, dry environment to prevent damage.

Conclusion

Magnetic stirrers are indispensable tools in modern laboratories, offering precision, versatility, and reliability across various applications. These devices enhance efficiency and ensure consistent results from basic mixing to complex chemical synthesis. Advanced models, such as the Magnetic Hot Plate Multi-Position Stirrer and High-Capacity Hot Plate Stirrer, incorporate cutting-edge features to meet the diverse needs of researchers and professionals.

At Borosil Scientific, we design our magnetic stirrers with quality, safety, and user-friendliness in mind. Our range, from multi-position hot plate stirrers to higher-volume models with integrated temperature controls, ensures that researchers and technicians can find the perfect fit for their experiments. Contact us today to learn more about how our magnetic stirrers can support your laboratory’s evolving needs.
