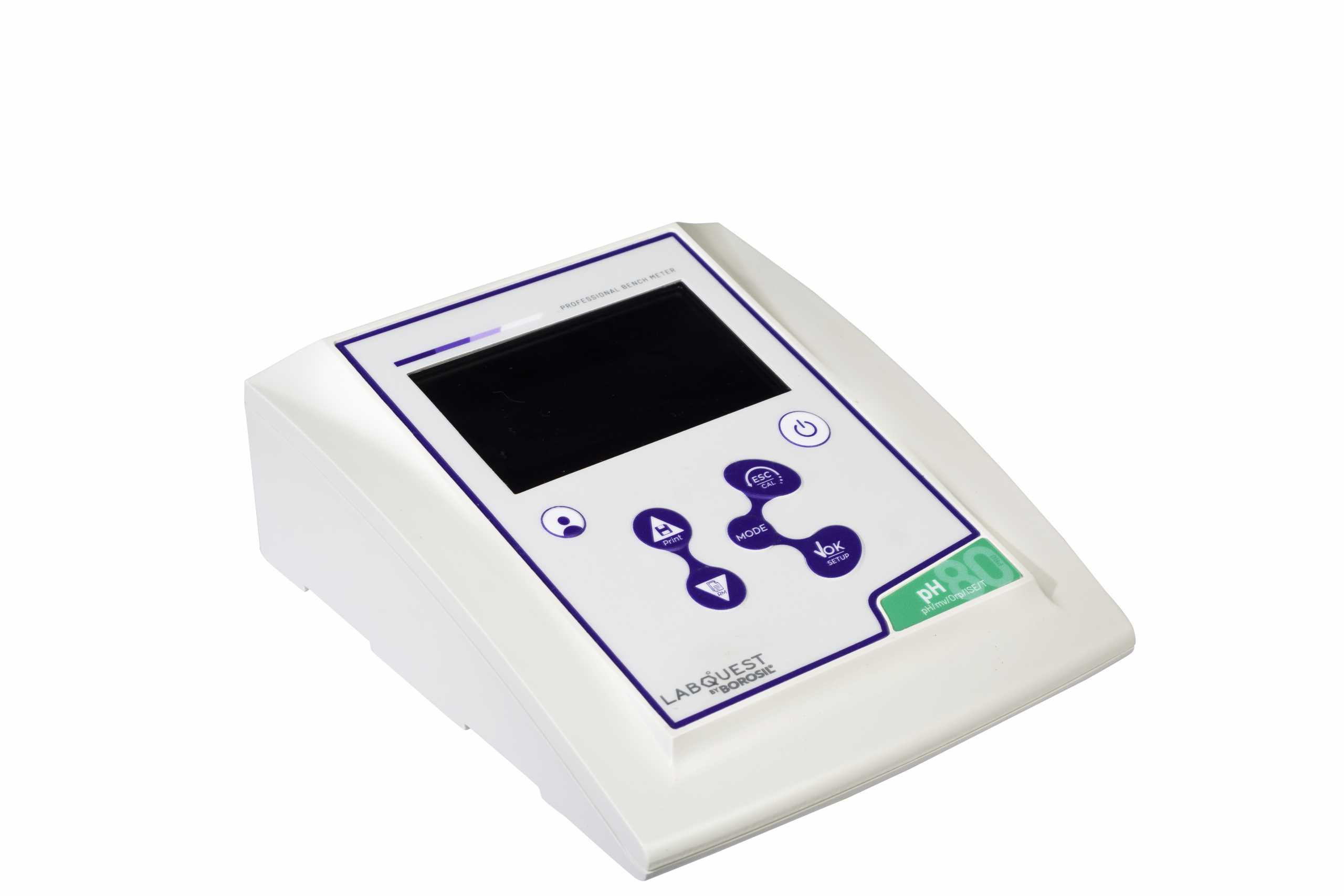

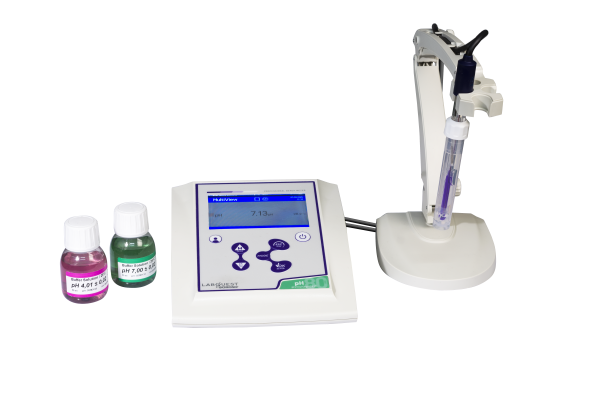

pH 80 Bench Top meter

The Benchtop pH 80 Meter combines advanced measurement accuracy with a sleek, intuitive design for dependable lab performance. Equipped to measure pH, mV, and temperature with high precision, it’s ideal for routine analysis in research, environmental, and industrial laboratories. Its large display, smart calibration, and user-friendly interface make everyday pH analysis simpler, faster, and more reliable.

- Simultaneous display up to 6 parameters of user’s choice;
- Selectable resolution: 0.1/0.01/0.001 pH; automatic scaling for COND;
- Automatic and manual pH calibration up to 5 points;
- Automatic ISE calibration up to 5 points;
- Automatic or manual ORP calibration on one point;
- Automatic COND calibration up to 4 points and manual 1 point;
- Ultra-pure water compensation for low conductivity measurements;
- Conductivity cell with 2 and 4 rings;
- Selectable cell constant 0.1 / 1.0 / 10;
- Data recall of last calibration;
- Graphical display of electrode condition;
- Min-Max alarm thresholds setting for pH and ORP parameters;
- Analog view;
- Calibration due alarm;
- Data logger up to 8,000 GLP records, downloadable on PC or printer;
- Free “DataLink+” software for data management to PC;
- Multilanguage: Ita - Eng - Deu - Fra - Esp - Por;
- USB connection for PC and RS232 for printer;
Advanced User Management
The new advanced user management
system includes 4 levels of access, for 15 total
profiles, with different privileges:
ADMIN - RESPONSIBLE - USER - GUEST
Graphic Display
The 8/80 PRO Series features a large, backlit,
4.3 inch color display that allows all
information to be read clearly.
Calibration points, electrode status, user and
sample data, working and connection mode,
logger type, date and time are displayed.
The smart interface and multilingual menu (6
selectable languages) make these tools
extremely easy to use.
4 Rings Cell
The 80 PRO Series allows the use of the 4-ring
conductivity cell, enabling accurate
measurements over the entire scale using a
single sensor.
Multiview
Thanks to the new Multiview function, up to
a maximum of 6 parameters can be
selected in the PC 80 PRO multiparameter
to be displayed simultaneously.
The display shows in real time each
parameter, measurement value and
temperature.
Analysis Menu
Using the Analysis menu, information regarding
the sample, batch, user, supervisor, company,
method, environmental conditions, etc. can
be entered.
Customizable Templates
Up to 4 customizable templates to tailor the
measurement experience to your liking.
The templates allow you to select which
Analysis menu items to print or export to the
DataLink+ software, so you can customize
your analysis reports.
Data Logger
With four different modes of data saving, the
instrument will be autonomous in monitoring the
progress of analysis, while the user can focus on
other operations in the laboratory:
- Manual Log;
- Automatic Log;
- Log when a Delta is reached;
- Log with Min-Max thresholds;
pH measuring range -2 ... 20
Resolution / accuracy 0,1 / 0,01 / 0,001 | ± 0,002
Calibration points 1 ... 5
Recognized buffers USA - NIST - DIN - METTLER TOLEDO - MERCK -DIN/NIST + 5 CUSTOM
Indication of calibration points Yes with icons
GLP calibration Yes with date and time
Electrode status indication Yes with icons and graph
Calibration expiration with alarm Yes
Measurement stability criteria Medium - High - Tit (titration)
Alarm settings Min - Max
mV measuring range (ORP) / Resolution ± 2000 | 0,1 / 1
ISE measuring range 0,001 ... 19999 ppm
Measuring units Mol/L | mg/L | g/L
Calibration points 2 ... 5
COND measuring range 0,00 ... 1000 mS
Resolution Automatic scale
Accuracy ± 1% full scale
COND Calibration points 1 ... 4
Recognized buffers 84 , 147 , 1413 µS , 12,88 , 111,8 mS - 1 custom value
Indication of calibration points Yes with icons
Temperature coefficient Ultra-pure water - 0,00 ... 10,00 %/°C
Reference temperature 15 ... 30°C
GLP calibration Yes with date and time
Calibration expiration with alarm Yes
Cell type 4 rings - 2 rings
Cell constant 0,475 - 0.1 - 1 - 10
TDS measuring range 0,1 mg/L ... 500,0 g/L
TDS Factor/ Accuracy 0.40 ... 1.00 / ± 1% full scale
Salinity measuring range / accuracy 0,01 ... 100 ppt / ± 1% full scale
Resistivity measuring range / accuracy 1 ... 10 MΩ / ± 1% full scale
Temperature °C measuring range / accuracy -30,0 ... 130,0 °C / ±0,2 °C
Temperature compensation Auto e manual 0 ... 100 °C (NTC 30 KΩ)
Temperature calibration Yes
Advanced user management 4 levels / 15 profiles
Audit trail Complete
Analysis menu Yes, up to 4 customizable templates
Multiview Up to 6 user-selectable parameters
Password Alphanumeric
Memory 8,000 data with date and time (Man - Auto - MinMax - Delta)
Display Colored TFT 4,3 “
Inputs BNC - RCA - Multipin - Ref (banana 4mm)
Connections 2x USB (PC - Keyboard) - RS232 (Printer)
Selectable languages Ita - Eng - Deu - Fra - Esp - Por
Magnetic stirrer Yes, independent control
Stirring speed / Capacity 0 ... 3000 rpm / 2 L
IP rating IP 54
Power supply AC/DC adapter 12 V / 1000 mA
Dimensions (LxPxA) - Weight 165 x 195 x 68 mm - 1,05 Kg
