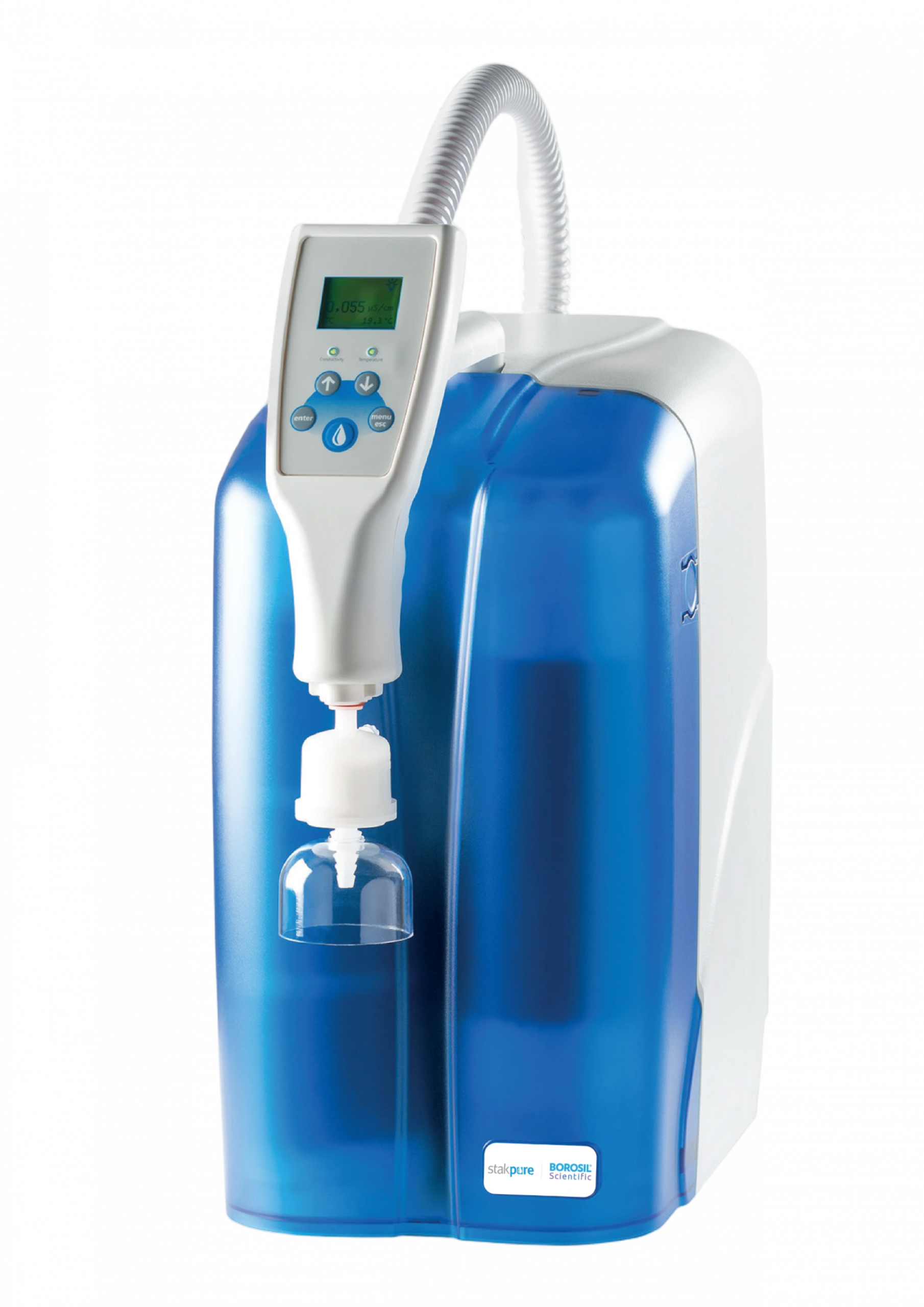

OmniaPure xs basic

The practical ultrapure water specialist.
For H2O pure type I.

NEW! The area-efficient, economical ultrapure water system with easy-to-use OneHand dispenser.

The type I specialist when it comes to the highest degree of purity with a resistivity of 18.2 MΩ x cm and a low TOC value of < 10 ppb.

Equipped with the practical Optifill dispenser, the new, compact OmniaPure xsbasic system saves space where valuable work space is needed.

image not found Request a Quote
Key Features
- OptiFill basic dispenser is standard
- Simple and economical filter change
- Leakage sensor is standard
- Integrated pressure reducer is standard
- Very space saving
- Ready-to-use, including filter cartridges
Specifications
Ultrapure water values type I OmniaPure xsbasic OmniaPure xsbasic UV
Conductivity at 25 °C [µS/cm] 0.055 0.055
Resistance at 25 °C [MΩ x cm] 18.2 18.2
TOC-value* [ppb] < 10 < 5
Dispensing performance [l/min.] up to 2 up to 2
Dispensing preset volumes optional optional
Particles** > 0.2 µm [1/ml] < 1 < 1
Bacteria** [CFU/ml] < 0.01 < 0.01
* The values given are typical and may vary depending on the quality of the feed water - ** With sterile filter capsule 0.2 μm
Technical Data
Ultrapure water values type I OmniaPure xsbasic OmniaPure xsbasic UV
Feedwater connection R3/4″ R3/4″
Electrical connection [Volt/Hz] 90-240/50-60 90-240/50-60
Connected load [W] 120 120
Ambient temperature [°C] 4 up to 40 [Recommendation: 10 up to 25] 4 up to 40 [Recommendation: 10 up to 25]
Dimensions [W x H x D mm] 240 x 530 x 435 240 x 530 x 435
Weight dry [kg] 14 14
