OmniaPure xs Touch

The intuitive ultrapure water specialist
For H2O pure type I.

NEW! The area-efficient, intelligent ultrapure water system with intuitive touch screen.

The Type I specialist when the highest degree of purity is required, with a resistivity of 18.2 MΩ x cm and a low TOC value of < 10 ppb. Optionally, endotoxins, nucleases and proteases are also removed.

Equipped with the new touch dispenser with modern swipe and scroll functions, the new, compact OmniaPure xstouch system offers all conceivable comfort features.

Well thought out sustainably with resource-saving Blueline features.

image not found Request a Quote
Key Features
- OptiFilltouch dispenser is standard
- Simple and economical filter change
- Leakage sensor is standard
- Integrated pressure reducer is standard
- Resource-saving filter volume
- Very space saving
- Ready-to-use, including filter cartridges

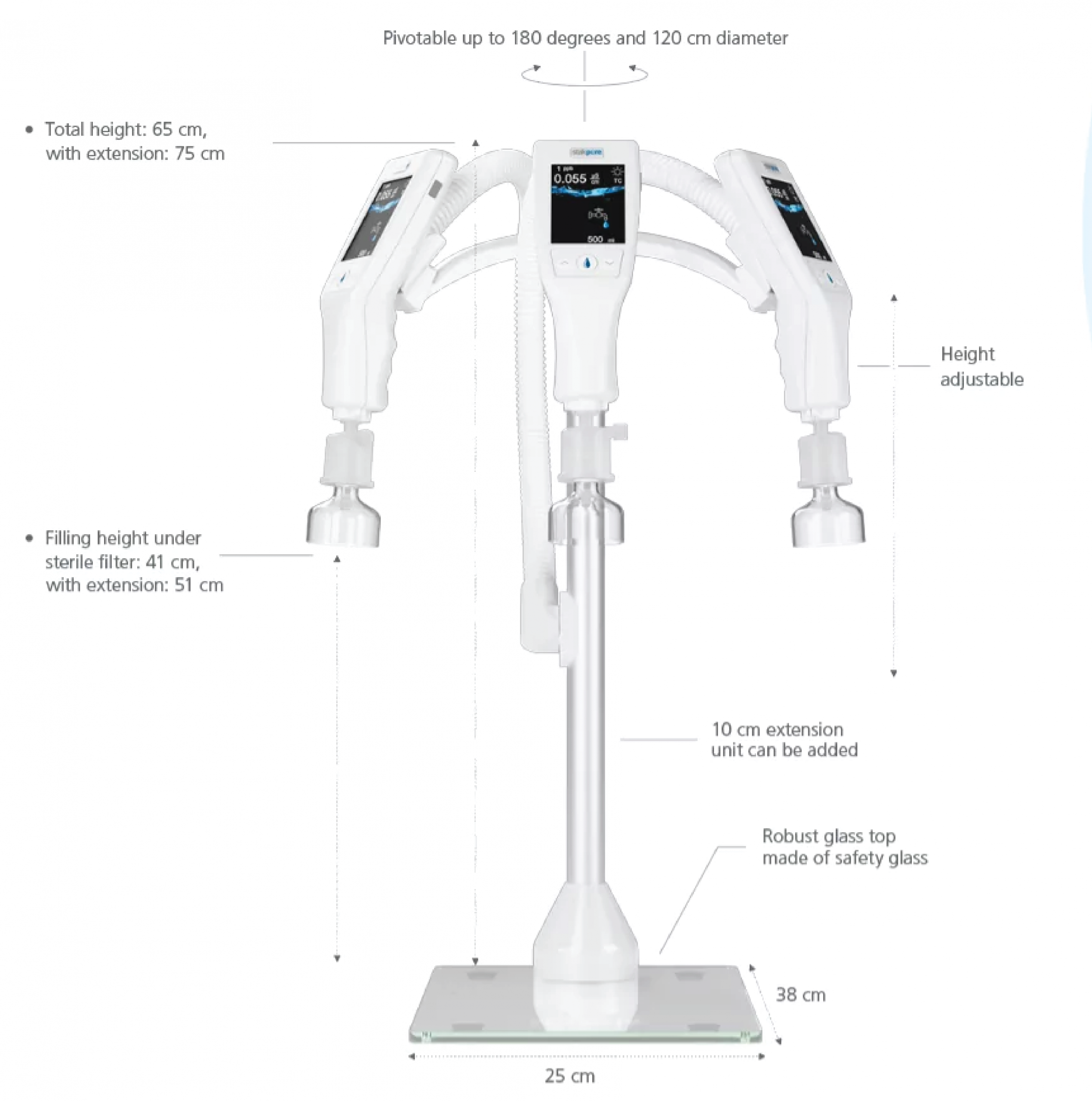

OptiFill touch Dispenser
Make optimum use of the valuable space in your laboratory and position the production unit under the bench. With the external dispenser and monitoring unit OptiFill touch Table / Wall, you can adapt the positioning to your laboratory environment. Whether practically standing on the laboratory bench or space-saving on the laboratory wall.
Specifications
Ultrapure water values type I OmniaPure xstouch UV-TOC OmniaPure xstouch UV-TOC/UF
Conductivity at 25 °C [µS/cm] 0.055 0.055
Resistance at 25 °C [MΩ x cm] 18.2 18.2
TOC-value* [ppb] < 2 < 5
TOC monitor yes yes
Dispensing performance [l/min.] up to 2 up to 2
Individually adjustable dispensing volume [liters] 0.05 up to 25 0.05 up to 25
Particles** > 0.2 µm [1/ml] < 1 < 1
Bacteria** [CFU/ml] < 0.01 < 0.01
Pyrogens (Endotoxins)*** [EU/ml] - < 0.001
RNase*** [pg/ml] - < 1
DNase*** [pg/ml] - < 5
Proteases*** [µg/ml] - < 0.15
* The values given are typical and may vary depending on the quality of the feed water ** With sterile filter capsule 0.2 μm or bio filter capsule *** With ultrafilter/bio filter capsule
Technical Data
Ultrapure water values type I OmniaPure xstouch UV-TOC OmniaPure xstouch UV-TOC/UF
Feedwater connection R3/4″ R3/4″
Electrical connection [Volt/Hz] 90 – 240/50 – 60 90 – 240/50 – 60
Connected load [W] 120 120
Ambient temperature [°C] 4 up to 40 (Recommendation: 10 up to 25) 4 up to 40 (Recommendation: 10 up to 25)
Printer port RS232 RS232
Data port USB-A USB-A
Dimensions* [W x H x D mm] 240 x 530 x 435 240 x 530 x 435
Weight dry [kg]* 14 14
Dimensions production unit under table [W x H x D mm] 240 x 415 x 310 240 x 415 x 310
Weight production unit dry [kg] 13 13
Dimensions OptiFill touch wall dispenser [W x H x D mm] 90 x 482 x 337 90 x 482 x 337
Weight wall dispenser [kg] 1 1
Dimensions OptiFill touch bench dispenser [W x H x D mm] 250 x 650 (750**) x 380 250 x 650 (750**) x 380
Weight bench dispenser [kg] 3 3
