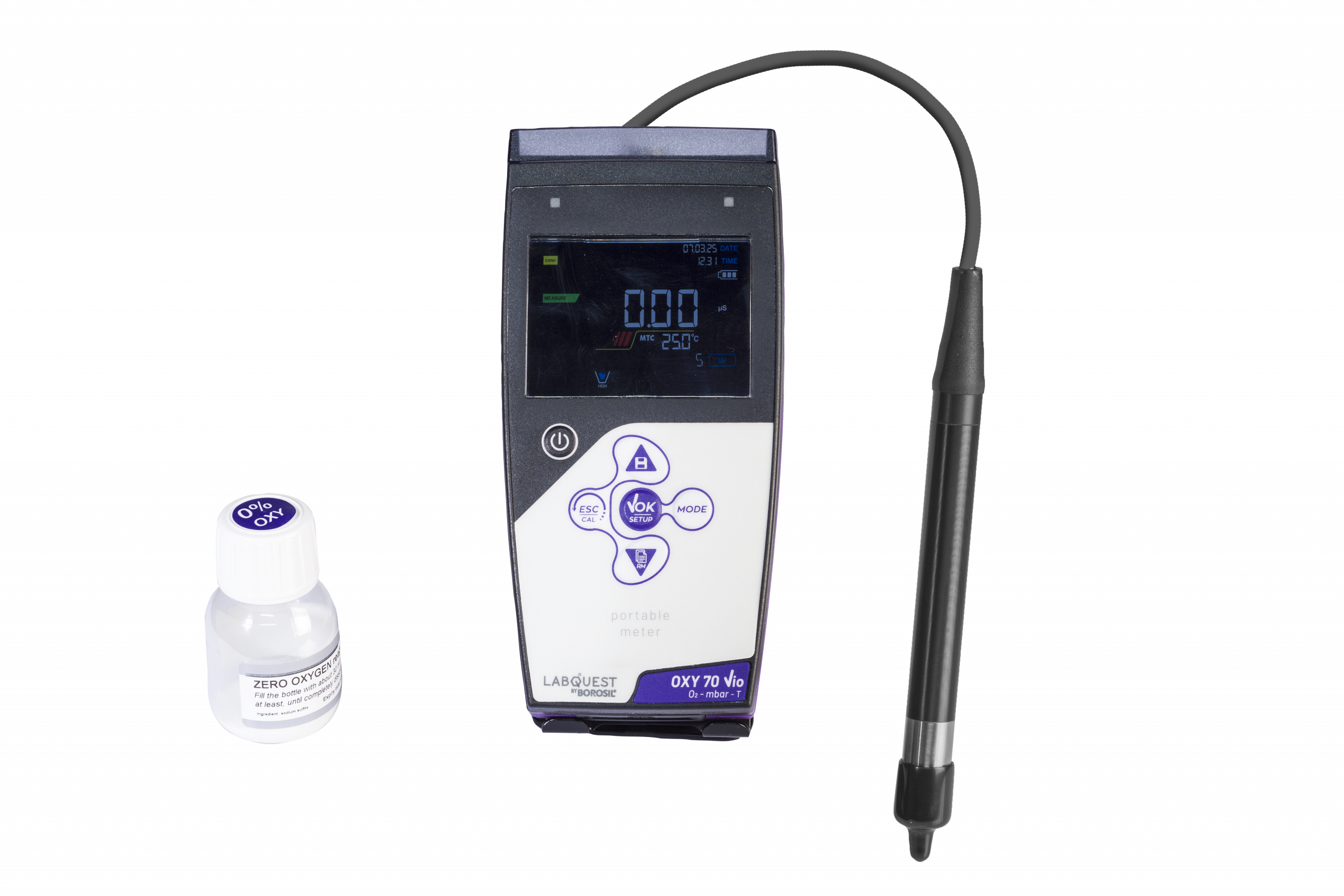

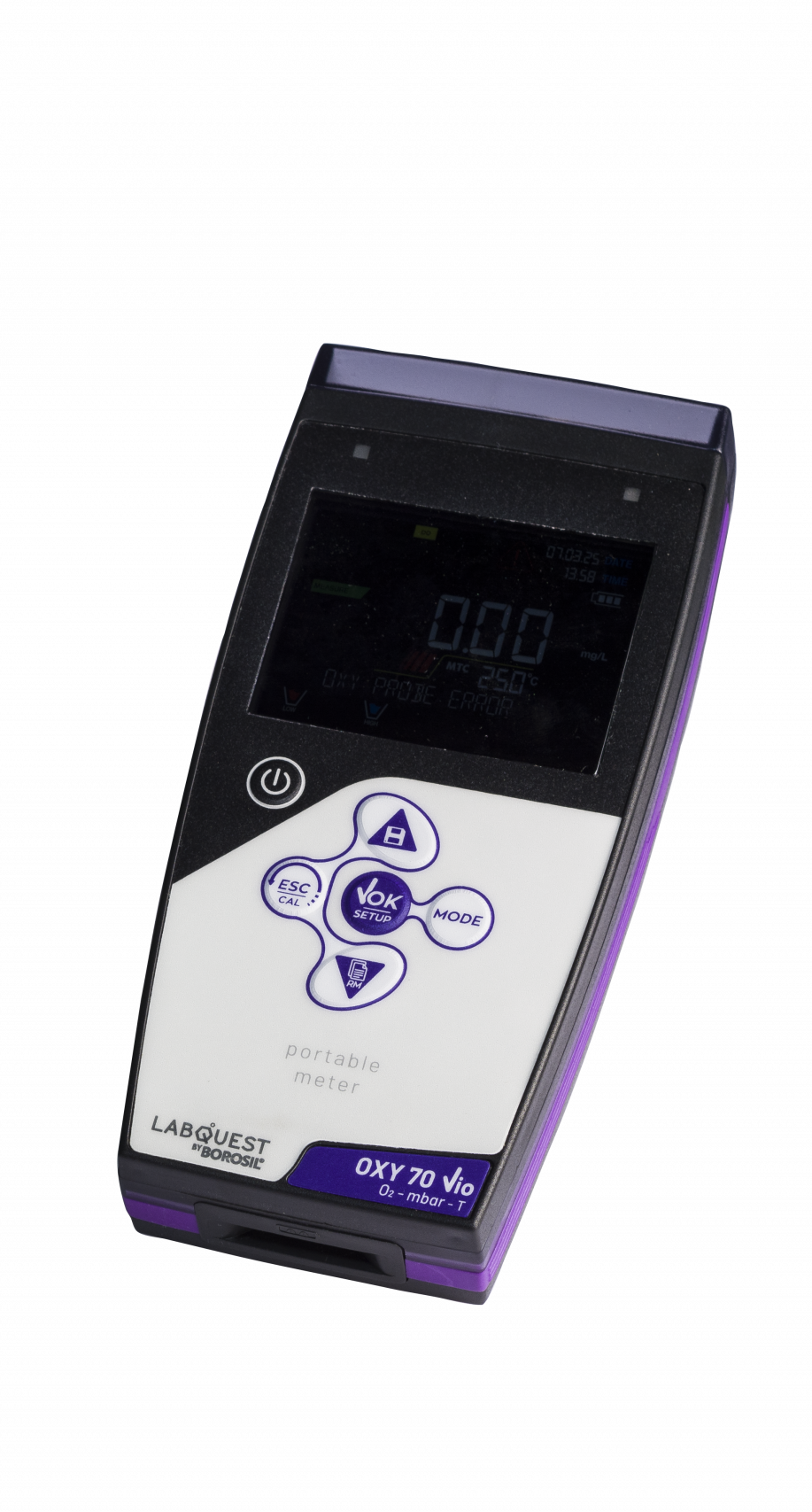

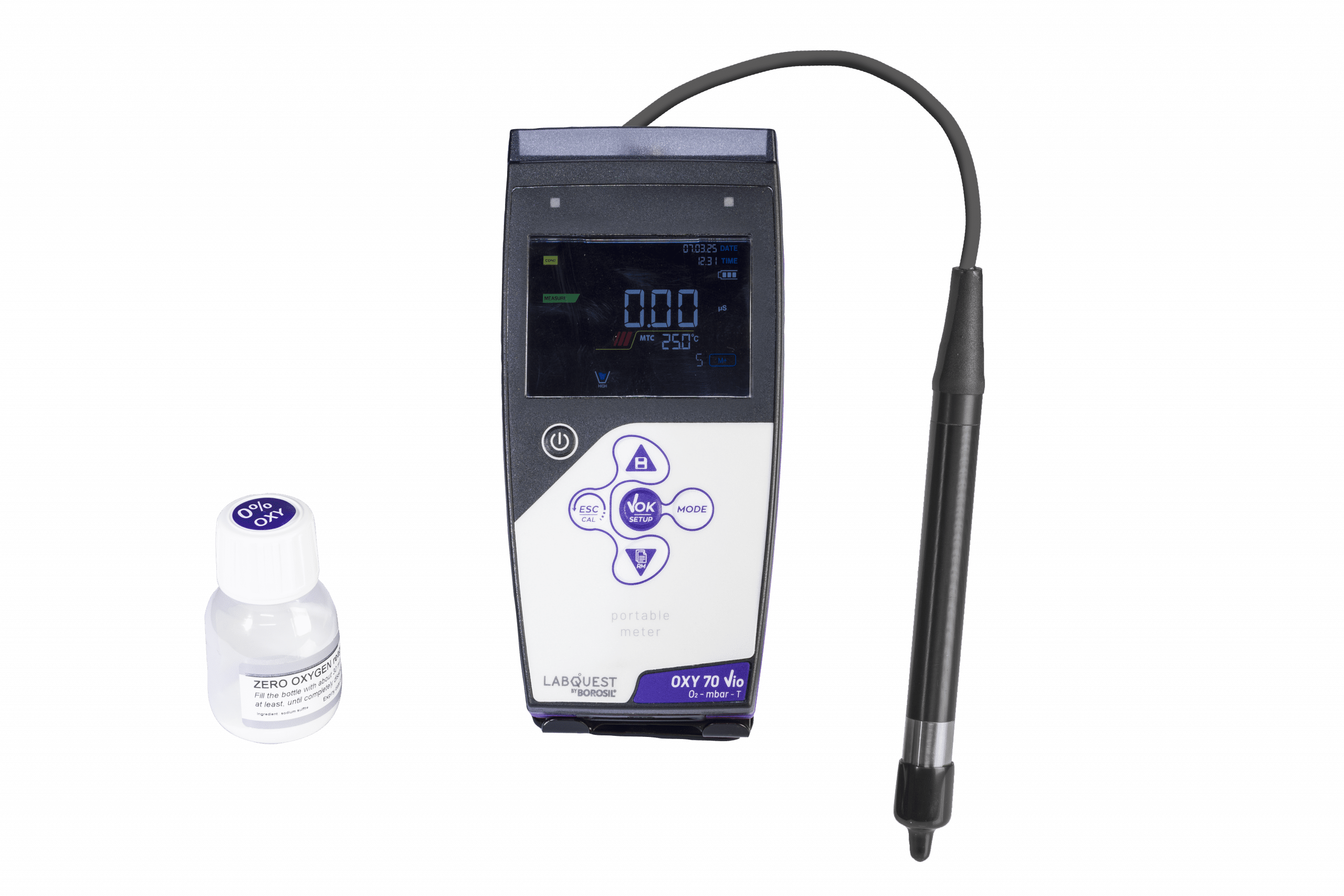

OXY 70 PORTABLE METER

Reliable Dissolved Oxygen Measurement—Anytime, Anywhere

The OXY 70 Portable Meter is engineered for fast, accurate, and hassle-free dissolved oxygen (DO) and temperature measurements in both field and lab environments. Its compact size, intuitive controls, and robust design make it especially suited for applications where mobility, reliability, and ease of handling are essential—such as routine water testing, site-based monitoring, and educational lab work.

- GLP functions: Date and time, recall of calibration data and function “Calibration due”.
- Data logger up to 1000 data, automatic and manual, PC connect via micro-USB
- Automatic brightness regulation, for long battery life.
- Only 6 buttons to easily manage all the functions of the instrument.

OXY 70	Specifications
O2 dissolved Measuring range	0,00...50,0 mg/l
Resolution	0.01 (< 20,00 mg/l) / 0.1 (> 20,0 mg/l)
Accuracy	± 0,2 < 10 mg/l-ppm ± 0,3 from 10 to 20 mg/l-ppm ± 5% > 20 mg/l-ppm
O2 saturation Measuring range	0,0…199,9 % / 200…400%
Resolution	0,1 / 1%
Accuracy	± 10%
Calibration point	1 or 2 automatic
Calibration point indication	Yes
Calibration report	Yes
Barometric pressure Measuring range	0…1100 mbar
Resolution	1 mbar
Accuracy	± 0,5%
Pressure automatic compensation	Yes
Temperature Measuring range	-10,0…110,0 °C
Resolution	± 0,1°C
Accuracy	± 0,5°C
Temperature compensation	Yes, only automatic
Salinity compensation	Yes, manual
System : GLP	Yes
Calibration due	Yes
Internal memory	1000 Data
Display	High definition backlit colour LCD
Brighteness adjustment	Automatic
IP protection	IP 57
Output	Micro USB
Working conditions	T= 0 … +45 °C / H = < 95 %
Power	3 batteries AA 1,5 V / Power supply 5 V
Dimensions / Weight	185 x 85 x 45 mm / 400 g
