Find a Dealer• With Interchangeable Inner and Outer Joint• Greater surface area than the Liebig Condenser owing to a series of bulbs,
resulting in higher cooling capacity
• Ideal for laboratory scale refluxing
|
MATERIAL
|
|---|
|

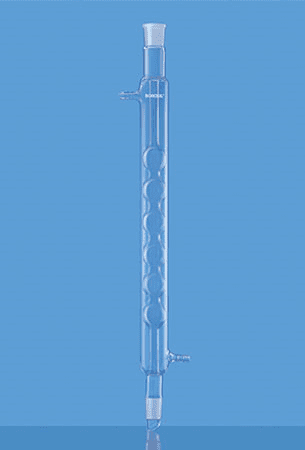

2480 – Allihn Condenser
With Drip Tip
2480 Allihn Condenser is supplied with a drip tip and complies with IS 6052. It has interchangeable inner and outer joints, and offers greater surface area than the Liebig Condenser owing to a series of bulbs, resulting in higher cooling capacity. Jacket lengths 200 mm to 600 mm.
| Product Code | Approx Jacket length (mm) | Approx overall height (mm) | Ground joint (socket) | Ground joint (Cone) | Quantity Per Case |
|---|---|---|---|---|---|
| 2480087 | 200 | 350 | 19 / 26 | 19 / 26 | 5 |
| 2480090 | 300 | 450 | 24 / 29 | 24 / 29 | 5 |
| 2480092 | 400 | 550 | 24 / 29 | 24 / 29 | 5 |
| 2480096 | 600 | 750 | 29 / 32 | 29 / 32 | 5 |
